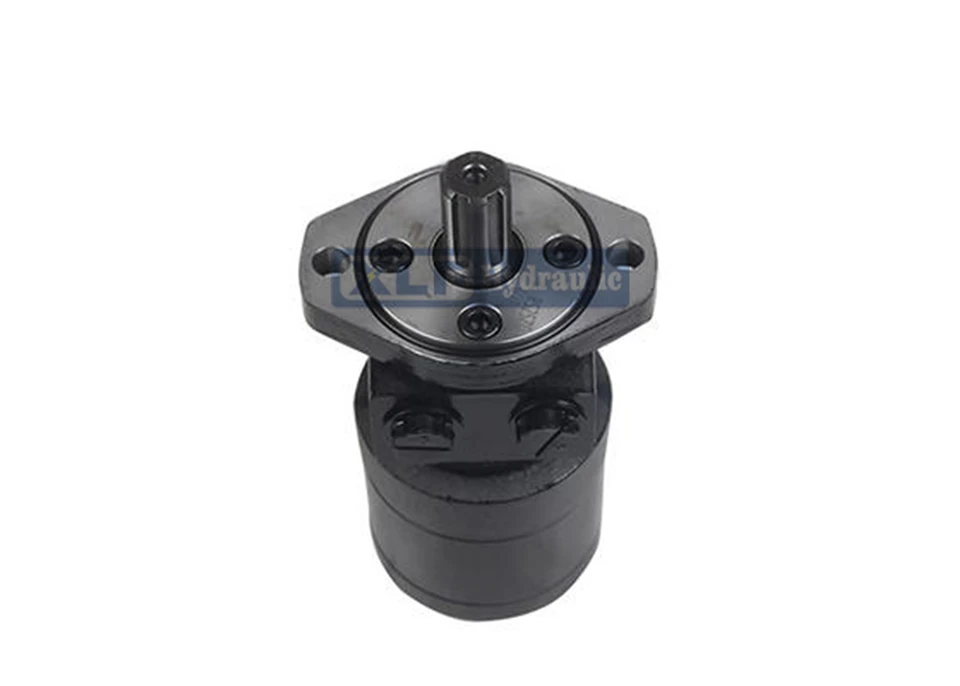

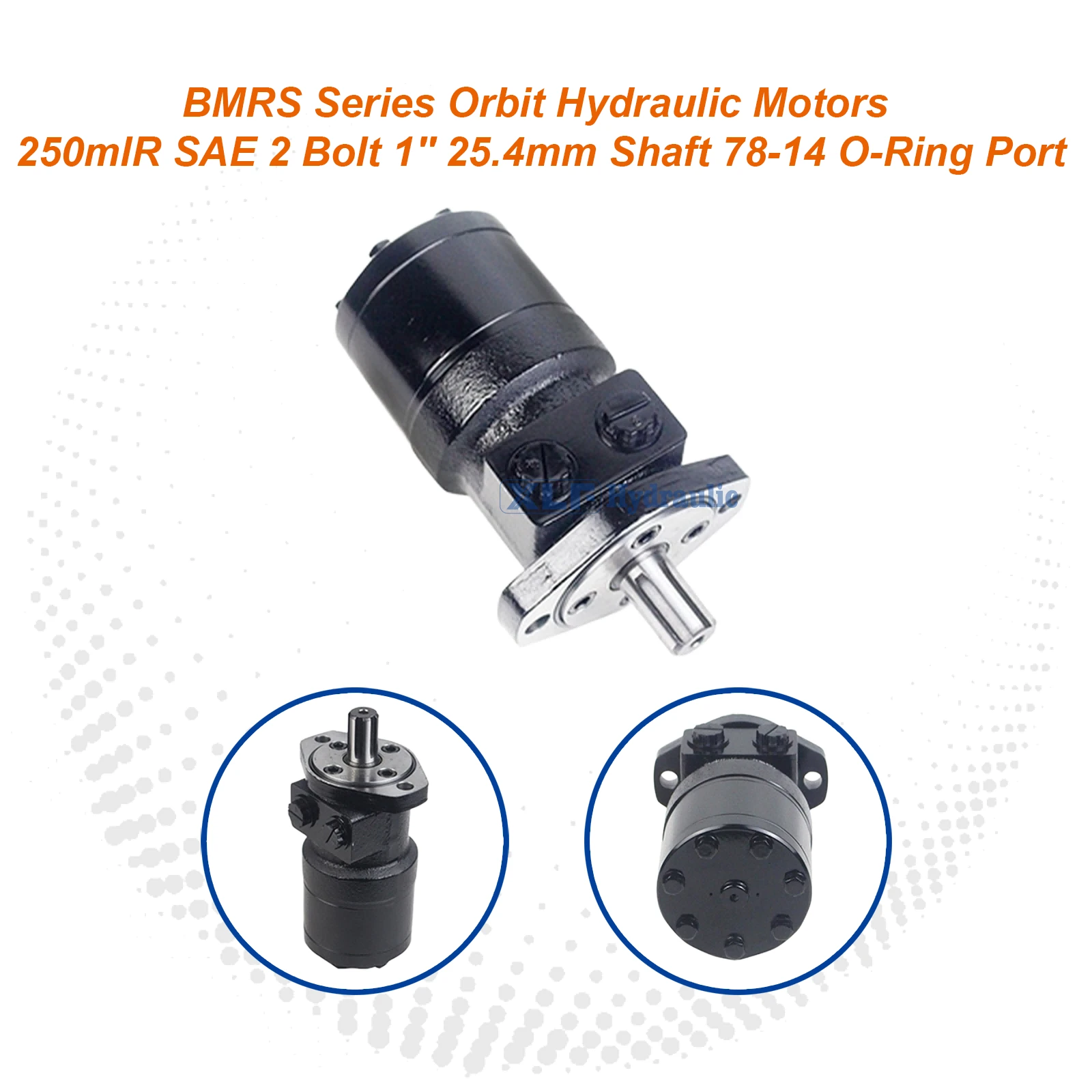

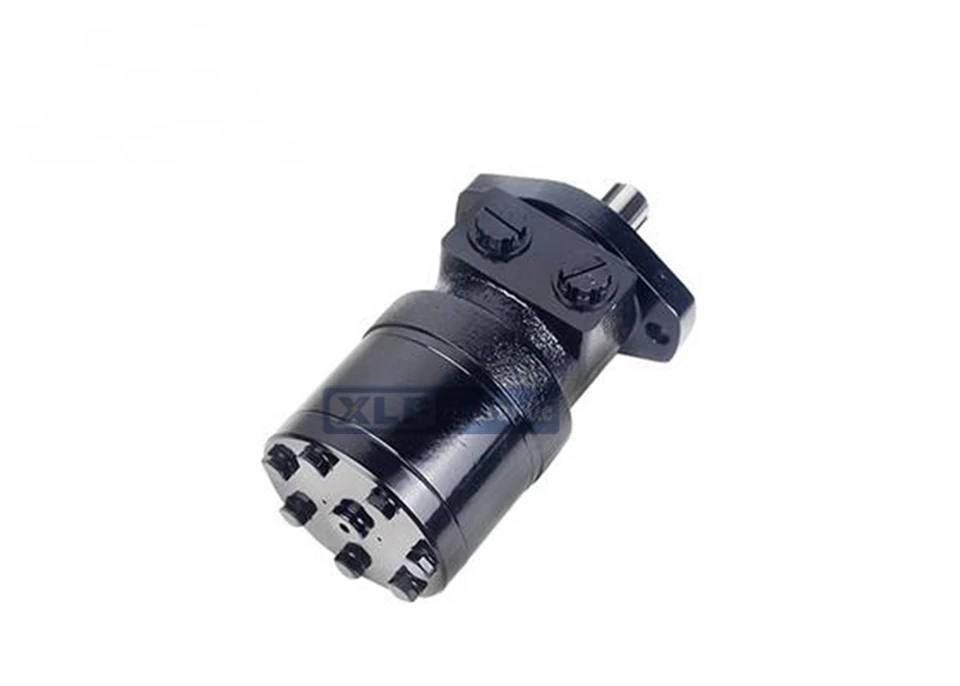

BMRS seri òbit idwolik motè|250cc Deplasman, SAE 2-Boulon, 1" 25.4mm Arbr, 78-14 Pò O-Ring

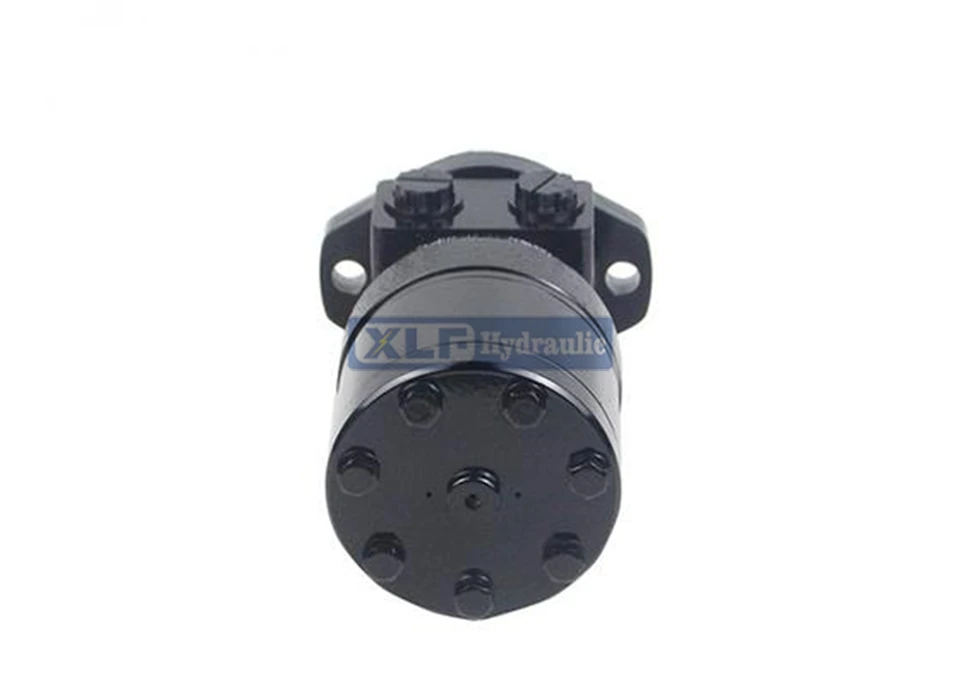

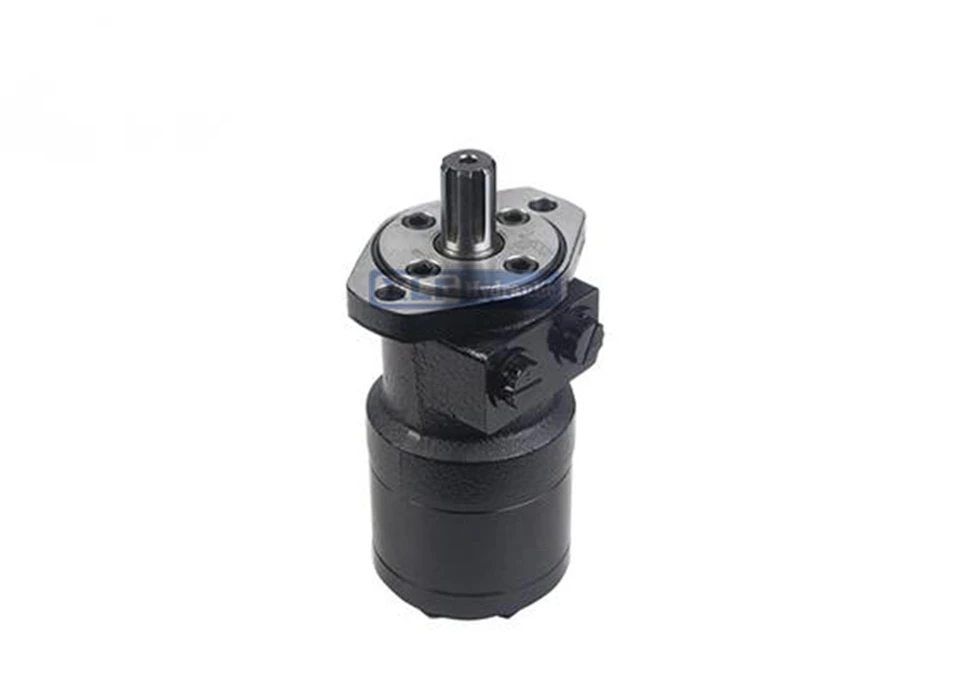

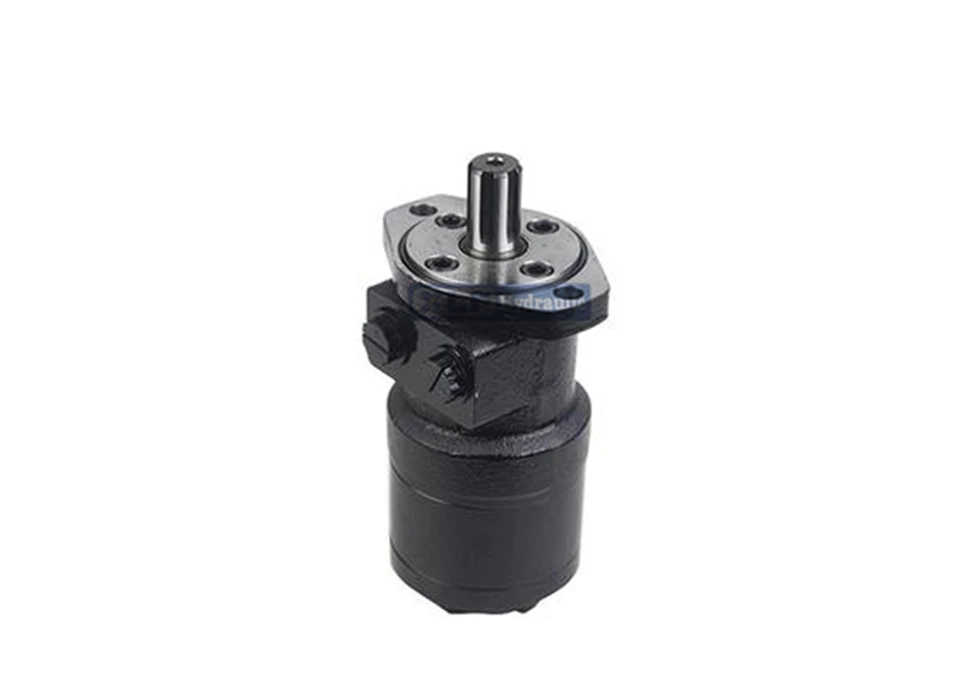

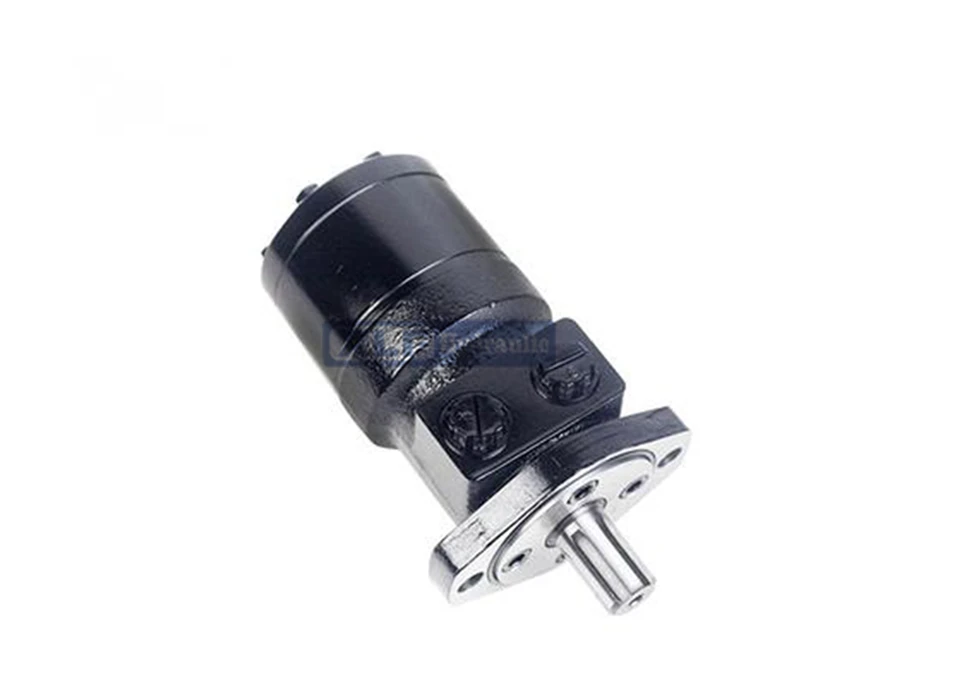

Seri BMRS òbit idwolik motè a vini ak deplasman 250cc, estanda SAE 2-boulon aliye, 1" (25.4mm) arbr pwodiksyon ak 78-14 O- pò bag, asire gwo entèrchanjabilite ak enstalasyon fasil. sistèm kondwi idwolik lou.

Voye rechèch

Pwodwi Entwodiksyon

hydraulic-motor01

Paramèt teknik

Atik	Motè idwolik òbit
Modèl No.	BMRS-250-H2-SS
Deplasman	250 ml/r
Flange	2 boulon
Arbr	1'' 25.4mm
Port	7/8-14 O-ring
Wotasyon	Goch Ak Dwat
Vitès	240 / 300 Rpm
Koupl	390 / 490 / 640 Nm
Koule	60 / 75 Lpm
Mete aksan sou	250ml/R òbit motè, 2 boulon òbit motè, 1 "òbit motè idwolik

Apèsi sou pwodwi a

Seri BMRS 250cc cycloidal idwolik motè se yon arbr-motè idwolik distribisyon ki adopte avanse Geroler® roulo stator-rotor teknoloji, ak yon deplasman jewometrik 253.3 cm³/rev (apeprè 250cc). Modèl sa a ekipe ak yon bride pou monte boulon SAE 2-, yon arbr dwat silendrik 1-pous (25.4mm), ak pò lwil oliv 7/8-14 SAE O-bag, ki se konfigirasyon estanda entènasyonal inivèsèl. Motè a prezante yon estrikti distribisyon lwil axial ak yon kolòn ki mete pè stator-rotor konsepsyon, ki gen karakteristik yo nan gwo koupl kòmanse, operasyon ki estab, ak yon estrikti kontra enfòmèl ant. Li se yon altènativ ideyal nan modèl mak entènasyonal nan menm spesifikasyon tankou Danfoss OMR ak Eaton 2000 seri. Li se lajman ki itilize nan jaden tankou machin agrikòl, machin jeni, manyen materyèl, ak ekipman endistriyèl.

Jaden aplikasyon yo

Seri BMRS 250cc motè idwolik yo lajman itilize nan ekipman sa yo:
1. machin agrikòl
Konbine rekòlte, tondèz, andwason
Manje mixers, epandeuz angrè, vaporisateur
Balers, brwayeur pay
2. Jeni ak machin konstriksyon
Aksè pou chargeur skid steer (bwòs, augers)
Ti woulèt, tranche
Mucking machin, perçage machin oksilyè
3. Ekipman manyen materyèl
Charyo, kamyon palèt
Sistèm kondwi senti CONVEYOR
Leve platfòm, treuil

Espesifikasyon prensipal la

Done teknik pou BMR ak 25 ak 1 pous ak 1 pous spline ak 28.56 arbr conique:

Kalite		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Deplasman jeyometrik (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. vitès (rpm)	kont.	1085	960	750	600	475	378	310	240	190	155
Max. vitès (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. koupl (N·m)	kont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	pik	105	165	270	320	370	460	560	640	650	680
Max. pwodiksyon (kW)	kont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. pwodiksyon (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. gout presyon (MPa)	kont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	pik	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. koule (L/min)	kont.	40	50	60	60	60	60	60	60	60	60
Max. koule (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Pwa (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Done teknik pou BMR ak arbr 31.75 ak 32:

Kalite		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Deplasman jeyometrik (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. vitès (rpm)	kont.	1250	960	750	600	475	378	310	240	190	155
Max. vitès (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. koupl (N·m)	kont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	pik	105	165	270	320	370	460	560	710	840	830
Max. pwodiksyon (kW)	kont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. pwodiksyon (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. gout presyon (MPa)	kont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	pik	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. koule (L/min)	kont.	45	50	60	60	60	60	60	60	60	60
Max. koule (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Pwa (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Presyon kontinyèl: Max.value nan motè opere kontinyèlman.
* Presyon tanzantan: Max.valè nan motè opere nan 6 segonn pou chak minit.
* Peak presyon:Max.value nan motè opere nan 0.6 segonn pou chak minit.
